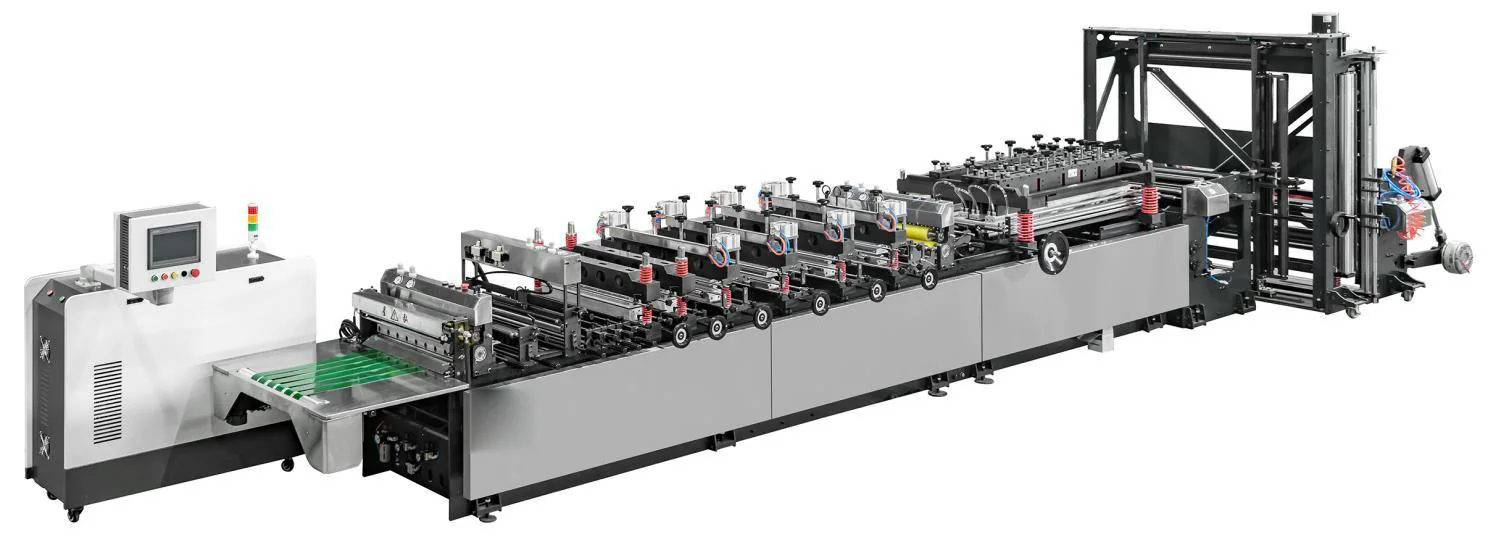

XA-600
Three side seal bag machine
- Unwindtwin unwind / reel change without stopping / K-type or triangle former folding
- Longitudinal sealsealed and cooled in line, as one unit or with the hot and cold stations separated
- Cross seala widened beam with several rows of springs, high pressure at low temperature
- Cutting and collectingtwin knives / CCD vision-assisted knife / die-cutting unit / automatic bag stacking / automatic inspection with reject
200cuts/minCutting speed
60–580mmBag width
60 / 65kWPower
5500kgGross weight
| Servo axes | 3 | 4 |
|---|---|---|
| Main motor | 4 kW × 1 | 4 kW × 1 |
| Traction | 1.5 kW × 2 | 1.5 kW × 3 |
| Unwind speed | 50 m/min | 50 m/min |
| Cutting speed | 200 cuts/min | 200 cuts/min |
| Material | PE laminated with CPP / BOPP / PET / OPP / paper / aluminium | PE laminated with CPP / BOPP / PET / OPP / paper / aluminium |
| Roll, dia × width | 800 × 1240 mm | 800 × 1240 mm |
| Film thickness | 60-200 micron | 60-200 micron |
| Bag width | 60-580 mm | 60-580 mm |
| Bag length | >30 mm | >30 mm |
| Sealing width | 10-50 mm | 10-50 mm |
| Pouch types | Three-side-seal | Three-side-seal |
| Power | 60 kW | 65 kW |
| Voltage | 10 mm² 3 phase × 5 wires | 10 mm² 3 phase × 5 wires |
| Air supply | 0.6 MPa 30 m/min 12 mm | 0.6 MPa 30 m/min 12 mm |
| Cooling water | 3 L/min | 3 L/min |
| Dimensions | L9500 × W2000 × H1806 mm | L10000 × W2000 × H1806 mm |
| Gross weight | 5500 kg | 5500 kg |
| Noise | 75 dB | 75 dB |
| Packing | 40HQ × 1 | 40HQ × 1 |
