XD-600

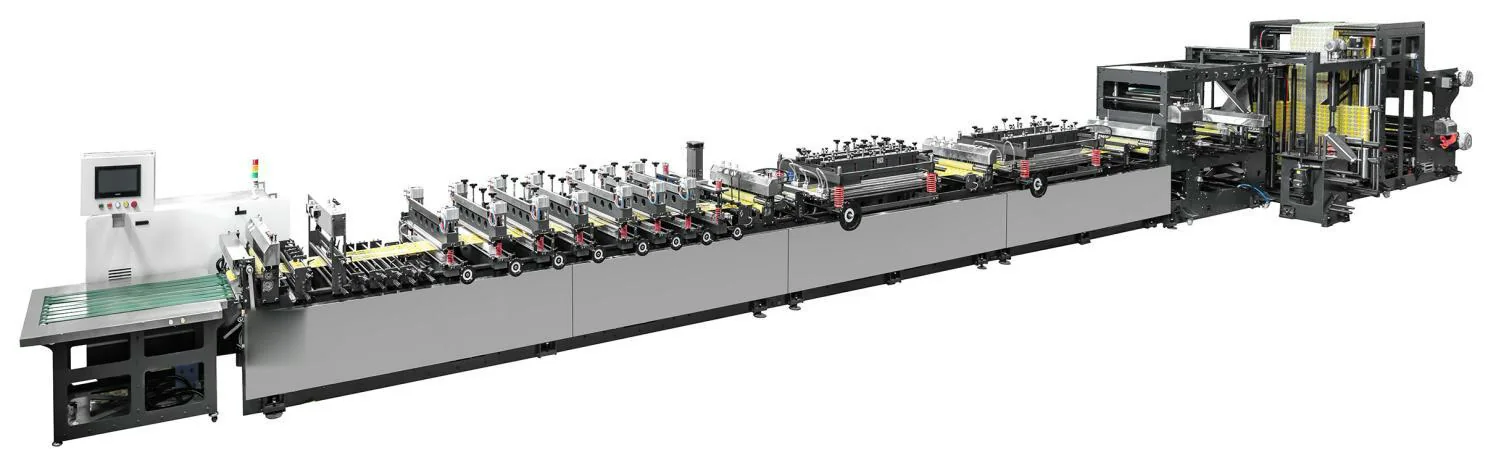

Stand-up zipper / four side seal bag machine
- Unwindtwin unwind / reel change without stopping / K-type or triangle former folding
- Longitudinal sealsealed and cooled in line, as one unit or with the hot and cold stations separated
- Zipperapplied by ultrasonic welding and heat press
- Cross seala widened beam with several rows of springs, high pressure at low temperature
- Cutting and collectingtwin knives / CCD vision-assisted knife / die-cutting unit / automatic bag stacking / automatic inspection with reject
120–200cuts/minCutting speed
60–550mmBag width
6500kgGross weight
60–200micronFilm thickness
| Servo axes | 8 |
|---|---|
| Main motor | 4 kW × 1 |
| Traction | 1.5 kW × 4 + 2.0 kW × 1 |
| Cutting motor | 1.0 kW × 1 |
| Cut shift motor | 0.75 kW × 1 |
| Unwind speed | 50 m/min |
| Cutting speed | 120-200 cuts/min |
| Material | PE laminated with CPP / BOPP / PET / OPP / paper / aluminium |
| Roll, dia × width | 800 × 1250 mm |
| Film thickness | 60-200 micron |
| Bag width | 60-550 mm |
| Bag length | >30 mm |
| Sealing width | 6-40 mm |
| Pouch types | Three-side-seal, stand-up, four-side-seal, zipper |
| Power | 75 kW total / 35 kW running |
| Voltage | 380 V 50 Hz, 10 mm² 3 phase × 5 wires |
| Air supply | 0.6 MPa 30 m/min 12 mm |
| Cooling water | 3 L/min |
| Dimensions | L17800 × W1850 × H2010 mm |
| Gross weight | 6500 kg |
| Noise | 75 dB |
| Packing | 40HQ × 1 + 20GP × 1 |
